Water heaters for heat pump systems SUNSYSTEM SWPN-L-EF

от 1 227,00 лв.

Its height is compensated by its smaller diameter; Heat exchanger coil with increased surface. Suitable for solar water heating, space-heating, and heat pump systems with large number of consumers.

Features

Energy Efficiency

Aesthetic PVC jacket

Easy installation

Convenient inspection opening

Optional kit for electric heating

Product features:

High efficiency insulation and outer casing of PVC with RAL 9006 color
Multi-position mounting of temperature sensor. Complex corrosion protection realized by means of titanium enamel and anode protection.
All threads are internal.
Easy installation./li>
Convenient inspection opening.
High efficiency heat exchanger coil with increased surface.
Optional kit for electric heating with nominal power 3kW, 4.5kW, 6kW or 7.5kW.

Modifications and sizes, Liters:

300, 400, 500

Energy Efficiency

Directive 2010/30 /EU, Regulation 812/2013:
Class B

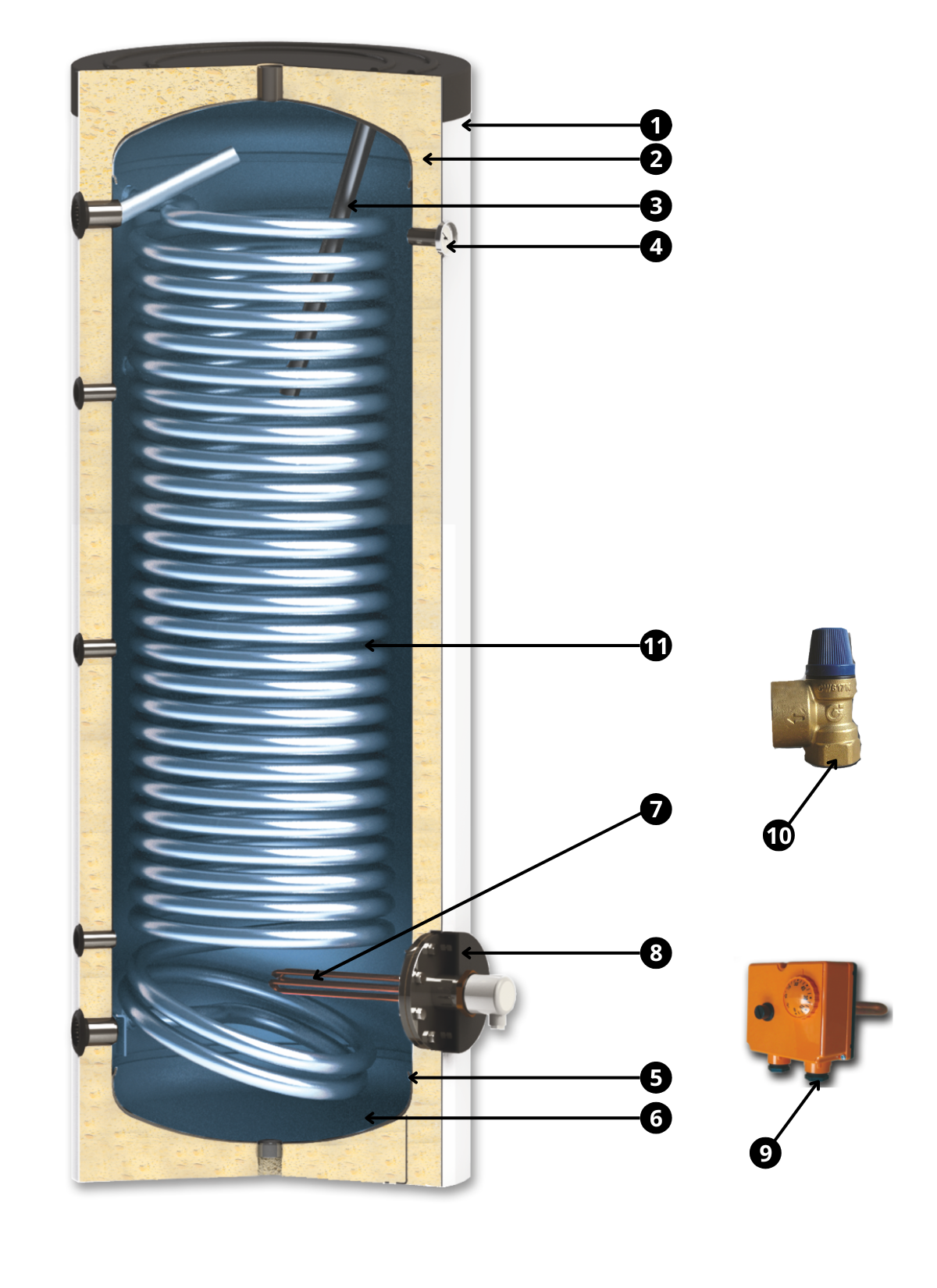

Elements:

1 – Aesthetic PVC jacket with color RAL 9006
2 – Highly efficient thermal insulation
3 – Thermometer
4 – Anode protector (DIN 4753-6)
5 – Water tank of low-carbon steel
6 – Titanium enamel (DIN 4753-3)
7 – Electric heating element
8 – Inspection opening with flange cover
9 – Thermostat with integrated thermal protection
10 – Safety valve, 8 bar
11 – High efficiency heat exchanger coil

Technical specifications

			SWPN-L-EF	SWPN-L-EF	SWPN-L-EF
			300	400	500
capacity		L	300	400	500
Height H / Installation height		mm	1722/1841	1685/1845	1808/1979
Diameter D		mm	ø 660	ø 760	ø 810
Installation			75 mm PU
Working pressure / max. temperature		bar/°C	10/95	10/95	10/95
Test pressure tank		bar	15	15	15
Lower coil S1	Surface	m2	3	3,9	4,5
	Capacity coil	L	20,4	23,6	29,2
	Continuous power	kW	90	115	130
	DIN 4708; 80/60/45 °C	m3 /h	2,21	2,7	3,19
	NL – a power coefficient. 60°C
	Pressure loss Δp	mbar	230	379	569
Working pressure / max. temperature of the coils		bar/°C	16/110	16/110	16/110
Pressure test coil		bar	25	25	25
Thermometer			option	option	option
Anode			+	+	+
El. Heater (optional)		kW	3/4.5/6	3/4.5/6/7.5	3/4.5/6/7.5
Weight		kg	138	188	215

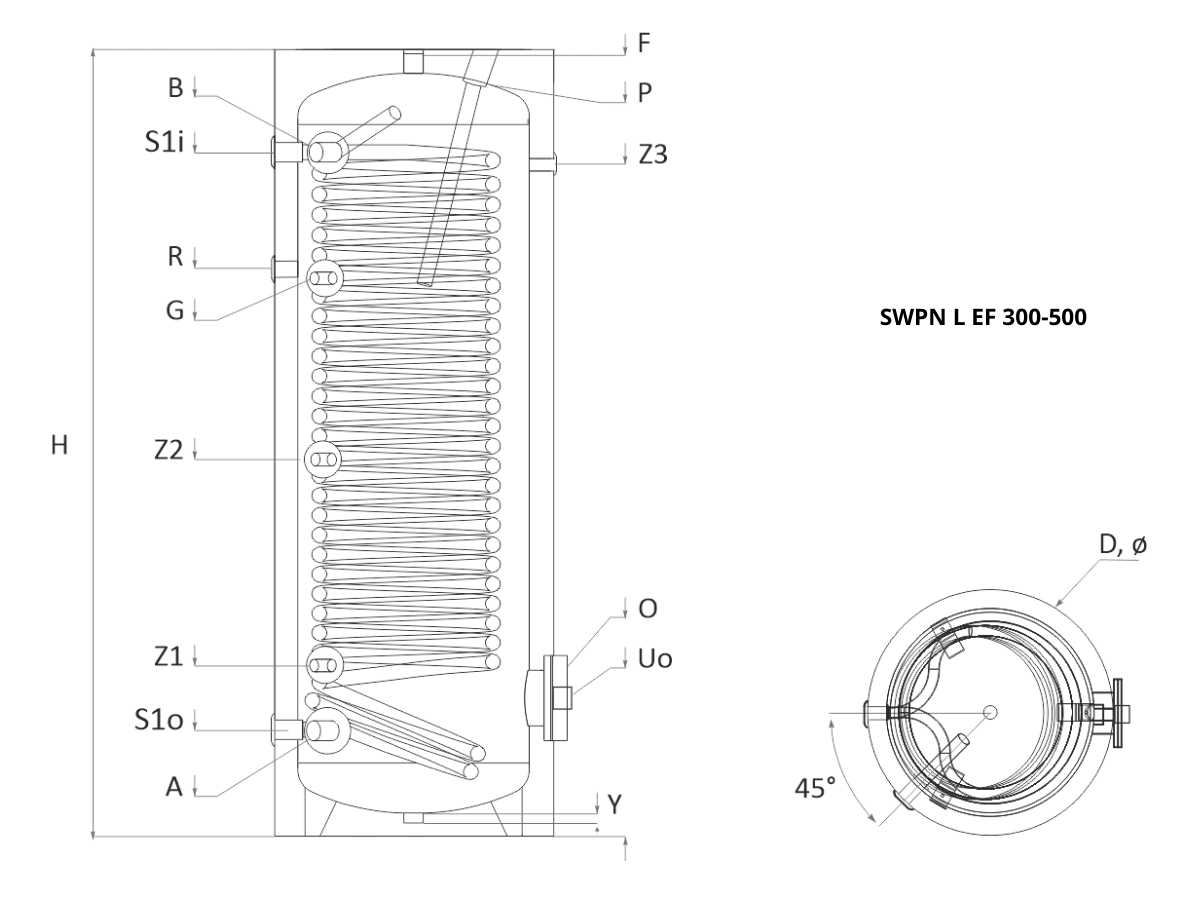

Lower output coil S1		A, mm	G1″/216	G1″/219	G1″/233
Login cold water		B, mm	G1″/216	G1¼”/219	G1½”/233
Login lower coil S1		C, mm	G1″/1464	G1″/1349	G1″/1524
Exit upper coil S2		E, mm
Thermoregulator		G, mm	G½”/1188	G½”/1074	G½”/1253
Recirculation		R, mm	G¾”/1204	G1″/1139	G1″/1290
Login upper coil S2		I, mm
Exit hot water		K, mm	G1″/1464	G1¼”/1409	G1½”/1524
Venting		F, mm	G1″/1722	G1″/1682	G1″/1803
Manhole / flange		O, ø	110/180	110/180	110/180
Manhole / flange		mm	282	304	310
Draining		Y, mm	G1″/10	G1″/10	G1″/10
Anode		P, mm	G1¼”/1722	G1¼”/1511	G1¼”/1638
Electric heater (optional)		U, mm	G1½”/282	G1½”/304	G1½”/233
Slot for additional sensor		Z, mm	G½”/352	G½”/379	G½”/398
			G½”/797	G½”/654	G½”/847
			G½”/1464	G½”/1384	G½”/1524
