Water tanks for heat pump systems SUNSYSTEM SWUP SLIM EXT

Water heaters for heat pump system with heat exchanger coil with increased surface, all connections are at the top of water tank

Floor standing.
Compact size.
Designed for installation in spaces with small size.
Suitable for production of drinking water.
With one heat exchanger coil.
Powering capability by independent heat source (solar collectors or
biomass boiler).

Product Features:

Water tank made of steel

Enamelled inside

Cathodic protection against corrosion

Sensor tube

Insulation 50 mm hard PU

Product Features:

Water tank made of steel type S235JR+N.
One heat exchanger coil.
Operating pressure 10 bar.
Enamelled inside, according to DIN 4753-3.
Cathodic protection against corrosion, according to DIN 4753-6, magnesium anode 1¼“.
Inspection opening at the top of water tank 80 x 110 x LK 150.
Insulation: 50 mm rigid PU.
Pipe for fitting of sensor.
All connections are at the top of water tank, external threads, flat seals.

Capacity, Liters:

120, 150 and 200

Еnergy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:
Class C for capacity from 120 to 200 Liters;

Technical characteristics:

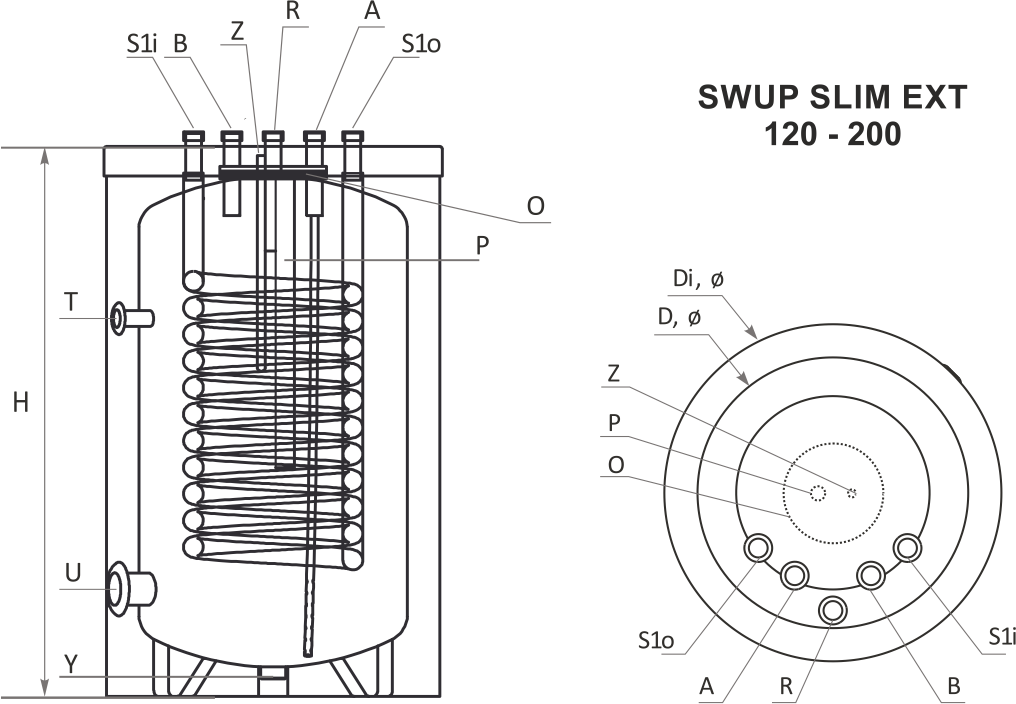

		SWUP SLIM EXT 120	SWUP SLIM EXT 150	SWUP SLIM EXT 200
Class Energy Efficiency		С
Capacity	L	120	150	200
Height with insulation / Мounting height	mm	930/1088	1070/1210	1340/1455
Diameter with insulation	D, mm	Ø 560	Ø 560	Ø 560
Insulation		50 mm rigid PU
Operation pressure / Max. temperature of tank	bar/0C	8/95	8/95	8/95
Operation pressure / Max. temperature of coil	bar	13/160	13/160	13/160
Electric heating (optional)	kW	2 х (3÷6)	2 x (3÷6)	2 x (3÷6)
Weight	kg	89	97	107
Cold water inlet	A, mm	R3/4”	R3/4”	R3/4”
Hot water outlet	B, mm	R3/4”	R3/4”	R3/4”
Recirculation	R, mm,	R3/4”	R3/4”	R3/4”
Coil capacity S1	L	6,4	8,2	8,7
Heat exchange surface coil S1	m2	1	1,25	1,3
Inlet/Outlet coil S1	S1i/ S1o, mm	R3/4” / R3/4”	R3/4” / R3/4”	R3/4” / R3/4”
Continuous power DIN 4708; 10°C/80°C/45°C, S1	L/h (kW)	800(33)	920(38)	1130(45.4)
NL – a power coefficient at 60°C, S1	NL 60°C	1,8	2,1	2,2
Pressure loss Δp, S1	Δp, mbar	100	120	125
Inspection opening/Flange	O,Ø, mm	DN 110	DN 110	DN 110
Draining	Y, mm,	Rp1”	Rp1”	Rp1”
Anode	P,mm”	M8	M8	M8
Sleeve for sensor	Z, mm	+	+	+
Thermometer	Т, Rp1/2”	640	760	1050
Connection for El. Heater on the mantel	U, mm, Rp1/2”	132	192	192
Adjustable feet		optional equipment
