SUNSYSTEM – 7-120 435W-455W HCM

Monocrystalline photovoltaic panel

High-efficiency and high-quality monocrystalline module with powers 435W-455W

Advantages

An investment with a future

High efficiency

Heat resistance

Reduced repayment period

An elegant look

Advantages:

Up to 30% more power gain by using light reflected from surrounding surfaces.
Excellent performance in high temperature and low light conditions.
High endurance capacity, bearing wind up to 2400Pa and snow load up to 5400Pa.
High reliability and resistance to extreme environmental conditions (fog, ammonia, sand, acid and alkali, etc.).
No Potentially Induced Degradation (PID).

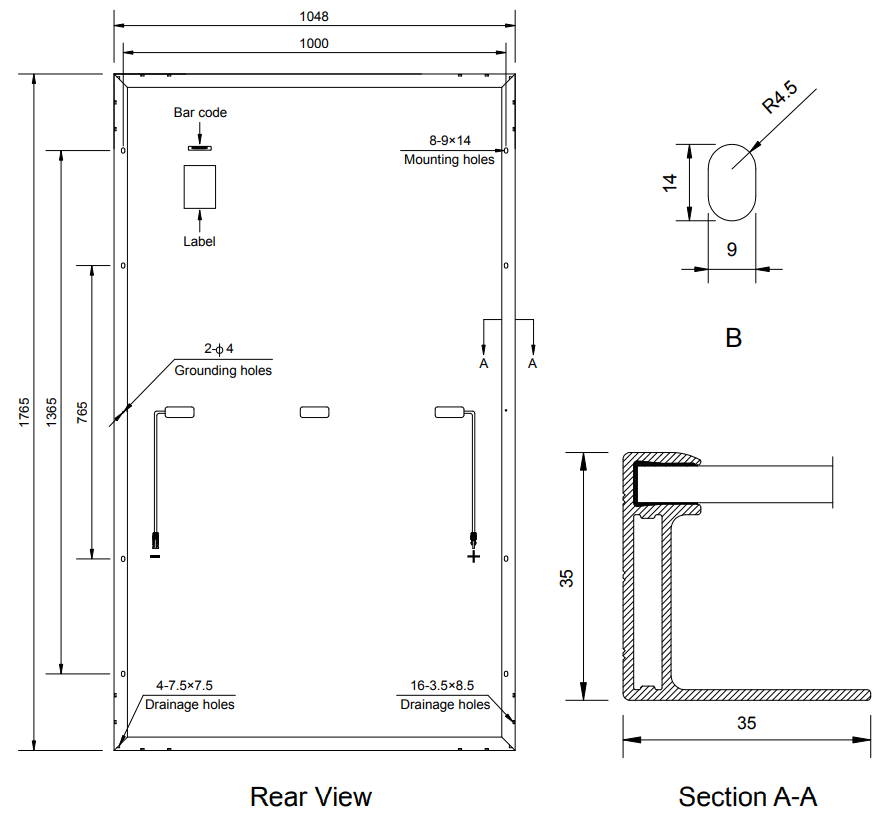

Dimensions:

Certificates:

IEC 61215, IEC 61730, CE
ISO 9001:2015:Quality management system
ISO 14001:2015:Environmental Management System
ISO 45001:2018:Occupational health and safety management system

WARRANTY:

20 year product warranty
30 year linear power warranty

STC ELECTRICAL CHARACTERISTICS:

Maximum power (Pmax)	W	435	440	445	450	455
Open circuit voltage (VOC)	V	40.8	41.0	41.2	41.4	41.6
Short circuit current (ISC)	A	13.65	13.70	13.75	13.80	13.85
Voltage at maximum power (Vmp)	V	34.0	34.2	34.4	34.6	34.8
Current at maximum power (Imp)	A	12.80	12.87	12.94	13.01	13.08
Module efficiency	%	20.06	20.29	20.52	20.75	20.99
Work temperature	°C	от -40°C до +85°C
Maximum system voltage	V	1000V DC/1500V DC
Fire resistance assessment		Type 1(in accordance with UL1703)/Class C(IEC61730)
Maximum rating of a series fuse	А	25

NOCT ELECTRICAL CHARACTERISTICS

Maximum power (Pmax)	W	324	328	332	336	340
Open circuit voltage (VOC)	V	45.1	45.3	45.5	45.7	45.9
Short circuit current (ISC)	A	11.06	11.10	11.14	11.18	11.22
Voltage at maximum power (Vmp)	V	30.9	31.1	31.3	31.5	31.7
Current at maximum power (Imp)	A	10.49	10.55	10.61	10.67	10.73

MECHANICAL CHARACTERISTICS

Cell type	Monocrystalline PERC 182*91mm
Number of cells	120 (6×20)
Module dimensions	1912x1134x35mm (75.28×44.65×1.38inches)
Weight	24kg (52.9lbs)
Front cover	3.2mm (0.13inches) tempered glass with AR coating
Frame	Anodized aluminum alloy
Junction box	Ip68, 3 diodes
Cable	4mm (0.006inches ), Portrait: 300mm (11.81inches); Landscape: 1200mm (47.24inches)
Connectors	compatible with Mc4 or MC4

TEMPERATURE CHARACTERISTICS

Nominal operating temperature of the cell (NOCT)	43°C±2°C
Temperature coefficient at Pmax	-0.36%/°C
Temperature coefficient at Voc	-0.28%/°C
Temperature coefficient at Isc	0.05%/°C
