Steel panel radiators

от 1 227,00 лв.

Each BIRNiT panel radiator delivers safe and efficient heating to your home, office or work place.

The distinctive desing adds more style in combination with the best quality and longest durability.

Advantages:

  • 6 different heights – 300, 400, 500, 600, 750,900 mm.
  • 27 different lengths between 400 and 3000 mm.
  • 4 or 6 connections for different type of installations
  • Operating pressure 7-10 bars, test pressure 10-13 bars.
  • Special steel and convector design creates maximum efficiency.
  • Maximum resistance to corrosion by epoxy polyester powder painting technology.
  • Special packaging and palletizing system against possible strokes.
  • All accessories are included in the package.
  • 10 years warranty.

Technical features

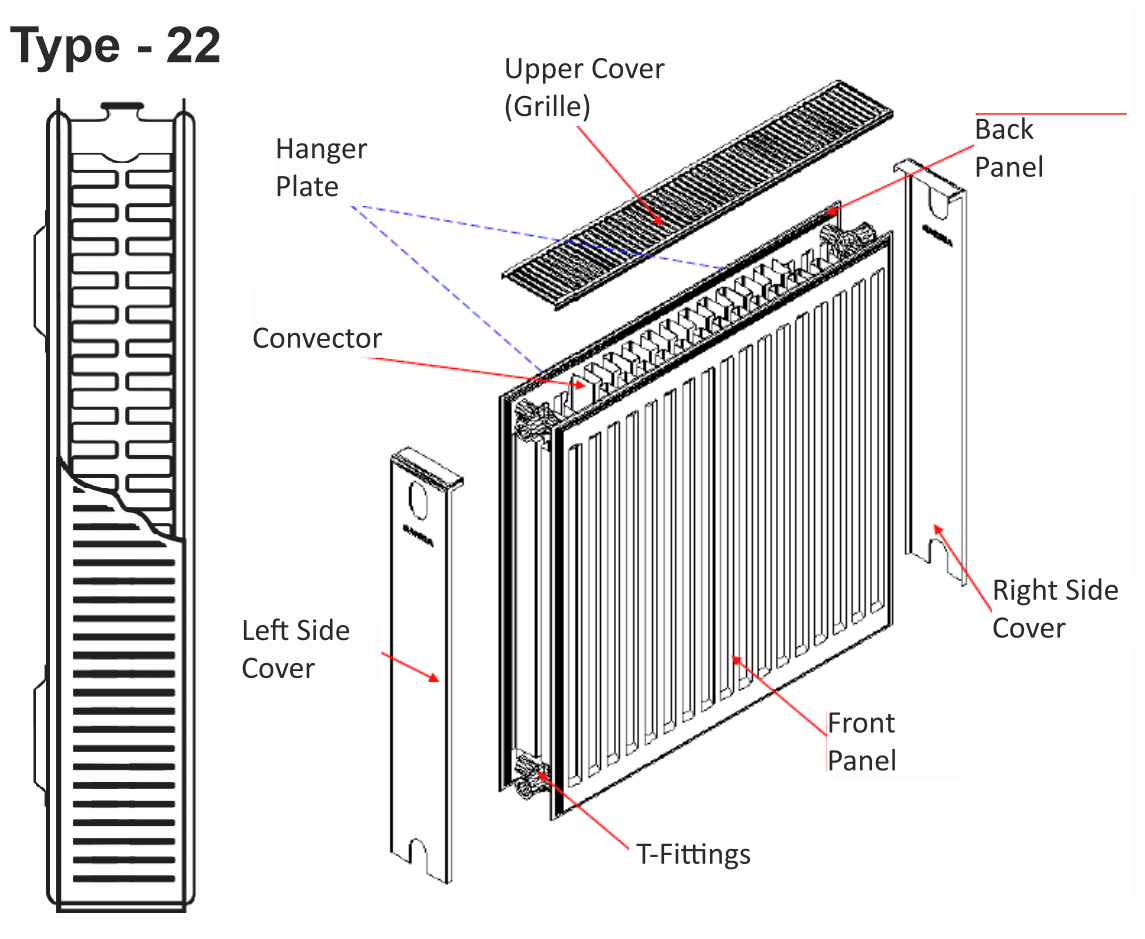

Тype 22

DIMENSIONSWEIGHT
With
Cover
(kg/m)		WATER
VOLUME
(Lt/m)
Radiator
Height (H)		Manifold
Distance (A)
30024517.23.4
40034522.74.2
50044526.055.2
60054532.106.2
75069542.67.2
900845518.2
HEAT OUTPUTS (W) – Type radiator – 22

ΔT 50°C-70°C      T°C Inlet water – 75°C     T°C Outlet water – 65°C
Height radiator (mm)300400500600750900
Room temperature
10°CKcal/hm103213171579183921192616
Watt/m120015321836213924643043
Btu/hm409552266266729784091038
12°CKcal/hm98312541504175120182367
Watt/m114314591749203723472753
Btu/hm390049775968695080089393
15°CKcal/hm92111761410164218922219
Watt/m107213681640191022002581
Btu/hm365646665595651675088806
18°CKcal/hm86010971316153217662071
Watt/m100012761530178220542409
Btu/hm341343555222608170078219
20°CKcal/hm81310371243144816681957
Watt/m94512061446168419402276
Btu/hm324441154934574666217766
22°CKcal/hm7709831179137215811855
Watt/m89611431370159618392157
Btu/hm305639004676544662757360
24°CKcal/hm7329341120130415031763
Watt/m85110861302151717482050
Btu/hm290437064444517659646995
ΔT 60°C-80°C      T°C Inlet water – 90°C     T°C Outlet water – 70°C
Height radiator (mm)300400500600750900
Room temperature
10°CKcal/hm131116732005233526913323
Watt/m152419462332271631303864
Btu/hm52016637795893681067913185
12°CKcal/hm124815931910222425633006
Watt/m145218532221258729813496
Btu/hm49536321757988261017011929
15°CKcal/hm117014931791208524032818
Watt/m136117372082242527943278
Btu/hm4644592671058275953511184
18°CKcal/hm109213941671194622432630
Watt/m127016211944226326083059
Btu/hm4334553166327723889910438
20°CKcal/hm103213171579183921192485
Watt/m120015321836213924642891
Btu/hm409552266266729784099863
22°CKcal/hm97812481497174320082356
Watt/m113714521740202723362740
Btu/hm388149535939691679699348
24°CKcal/hm92911861422165619092239
Watt/m108113801654192622202604
Btu/hm368847075644657375748884
